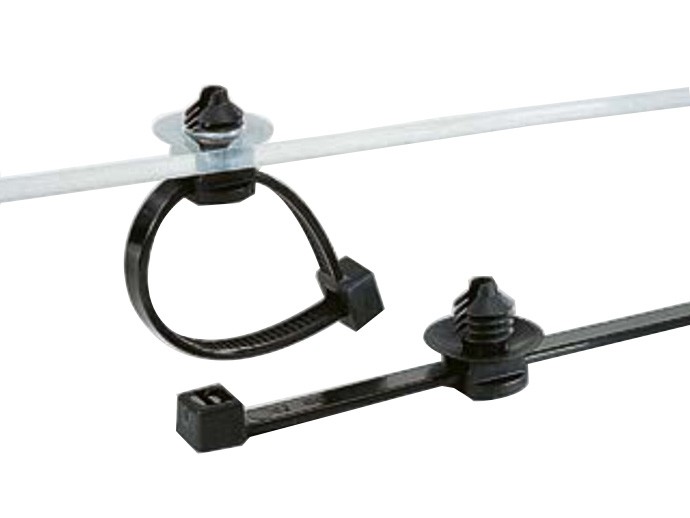

Two pieces Fixing Ties with Fir Tree,with Disc for Round hold

Technical information
Material UL approved nylon 66, 94v-2
Color Black
Features & Benefits Pre-assembled 2-piece fixing tie with fir tree foot part, it is easy to assemble without the need for a tool, and it could be applied to various thickness of panels.
Two pieces Fixing Ties with Fir Tree,with Disc for Round hold Henan Quanxiang Industrial Co., Ltd.
Two pieces Fixing Ties with Fir Tree,with Disc for Round hold Heating Resistant High Temperature Operating Temperature：
-40℃~+105℃
Product Max bundle diameter Size(mm)  Ø C Panel Thickness  (mm) Hole Ø  Applicable screw Min. loop Tensile Strength Packing
code Ø (mm) L w T A B (mm) Min. Max  (mm)   N(kgf) pcs/pack
QX30
QX30RFT5-HSB 31 150.0 3.5 1.2 13.2 6.9 16 0.70 3 4.5-5.0 M6 135(13.77) 100
QX30RFT6-HSB 31 150.0 3.5 1.2 13.8 7.5 16 0.80 3 6.4-7.1 M8 135(13.78) 100
QX50
QX50RFT5-HSB 45 200.0 4.6 1.2 13.2 6.9 16 0.70 3 4.5-5.0 M6 225(22.94) 100
QX50RFT6-HSB 45 200.0 4.6 1.2 13.8 7.5 16 0.75 3 6.4-7.1 M8 225(22.94) 100
QX50RFT7-HSB 45 200.0 4.6 1.2 18.9 12.7 15.8 0.80 7 6.5-7.0 M8 225(22.94) 100
QX50RFT8-HSB 45 200.0 4.6 1.2 17.4 11.5 16 0.80 6 7.7-8.0 Screw holes 225(22.94) 100
QX50RFT10-HSB 45 200.0 4.6 1.2 18.5 12.2 18.2 0.80 5 9.7-10.0 M12 225(22.94) 100
QX50LFT7-HSB 100 390 4.6 1.5 18.9 12.7 15.8 0.8 7 6.5-7.0 M8 225(22.94) 50
QX50LFT8-HSB 100 390 4.6 1.5 17.4 11.5 16 0.8 6 7.7-8.0 Screw holes 225(22.94) 50
QX50LFT10-HSB 100 390 4.6 1.5 18.5 12.2 18.2 0.8 5 9.7-10.0 M12 225(22.94) 50



Two pieces Fixing Ties with Fir Tree,with Disc for Round hold Henan Quanxiang Industrial Co., Ltd.
Heating and Weather Resistant High Temperature and outdoor High Temperature and outdoor：
-40℃~+105℃
Product Max bundle diameter Size(mm)  Ø C Panel Thickness  (mm) Hole Ø Applicable screw Min. loop Tensile Strength Packing
code Ø (mm) L w T A B (mm) Min. Max  (mm)   N(kgf) pcs/pack
QX18
QX18RFT3-HSW 20 100.0 2.5 1.1 10.2 4.0 13 1.5 3 M3 M3 80(8.16) 100
QX18RFT4-HSW 20 100.0 2.5 1.1 11.8 5.6 13 1 3 3.3-4.0 M4 80(8.16) 100
QX30
QX30RFT4-HSW 31 150.0 3.5 1.2 11.8 5.6 13 1 3 3.3-4.0 M4 135(13.77) 100
QX120
QX120RFT11-HSW 95 380.0 7.6 1.8 16.5 8.2 16 0.8 4.5 6.5-7.0 M8 535(54.46) 50
