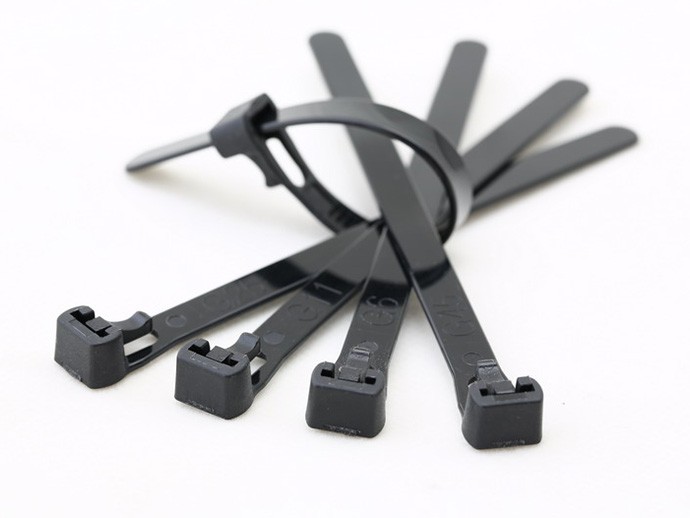

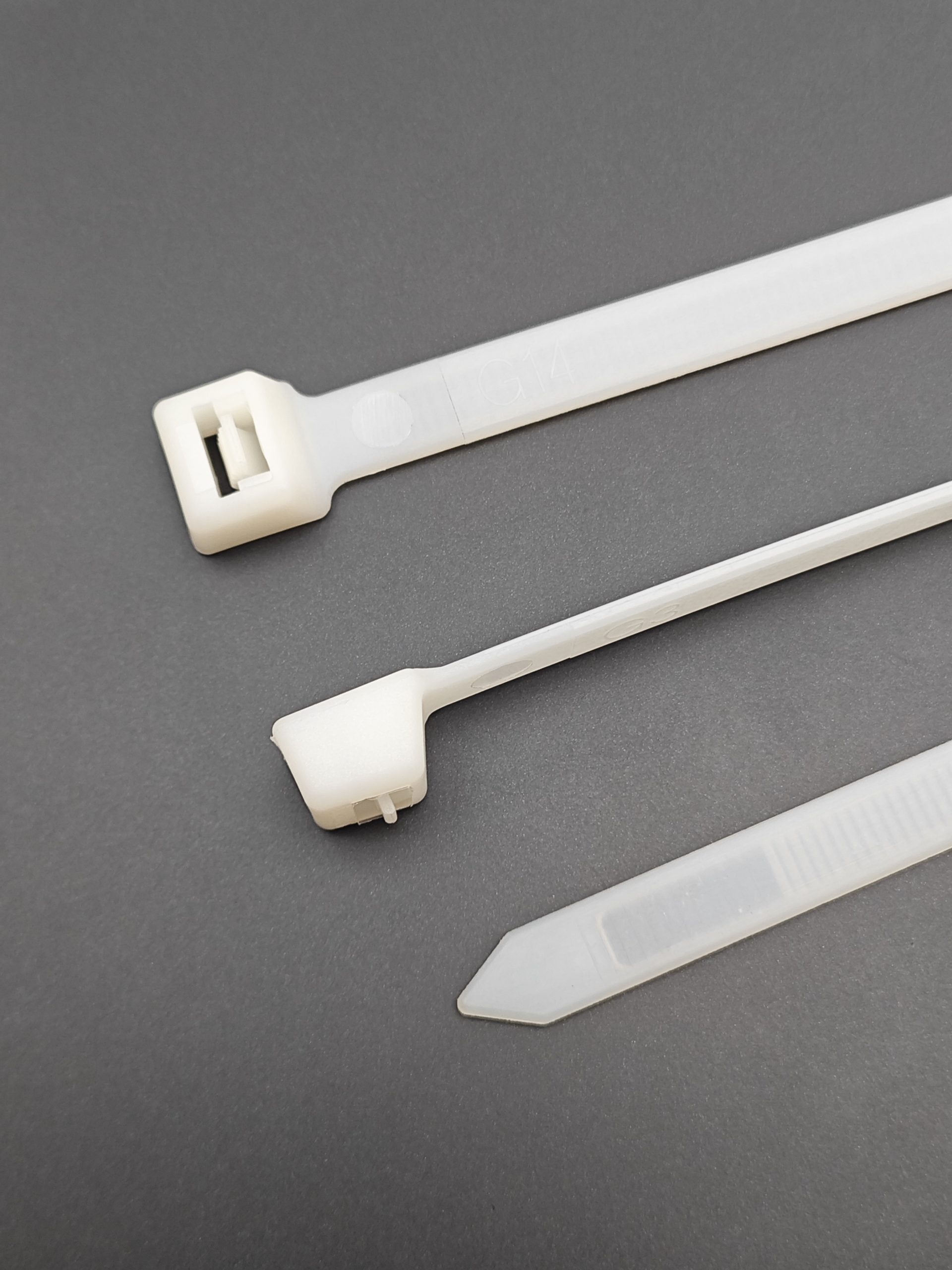

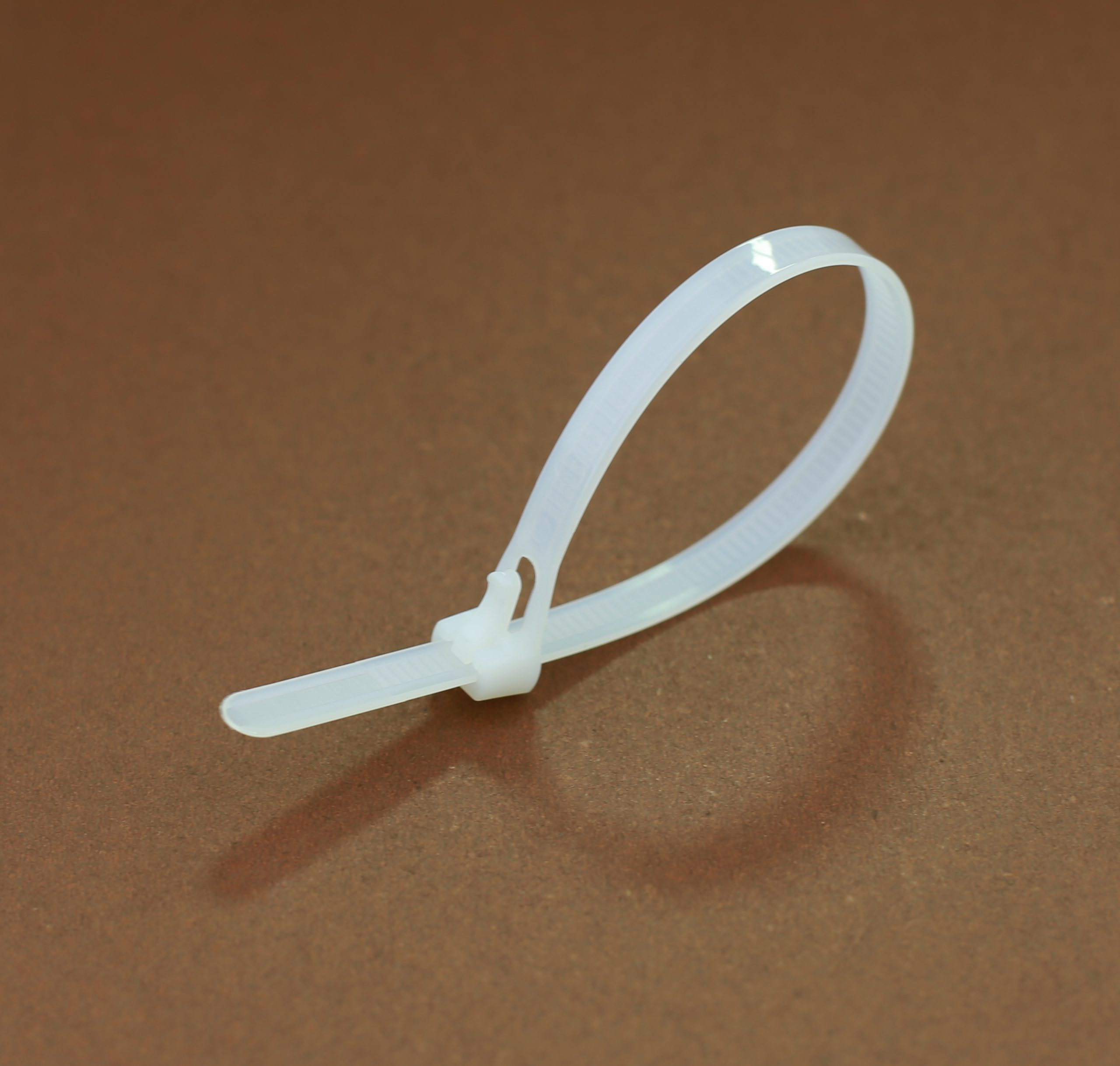

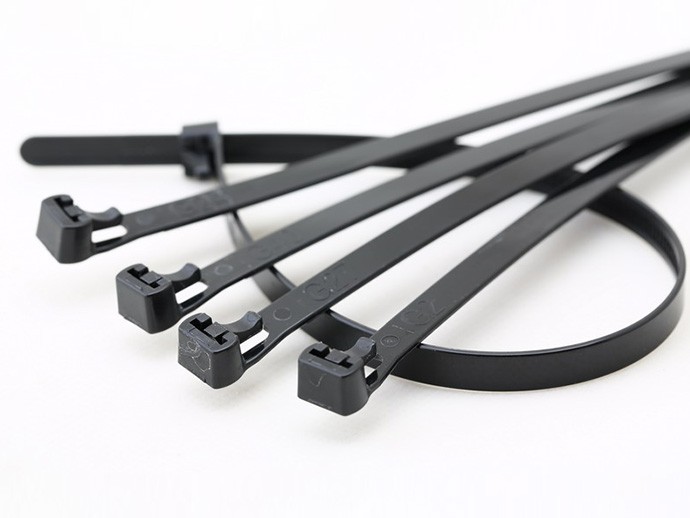

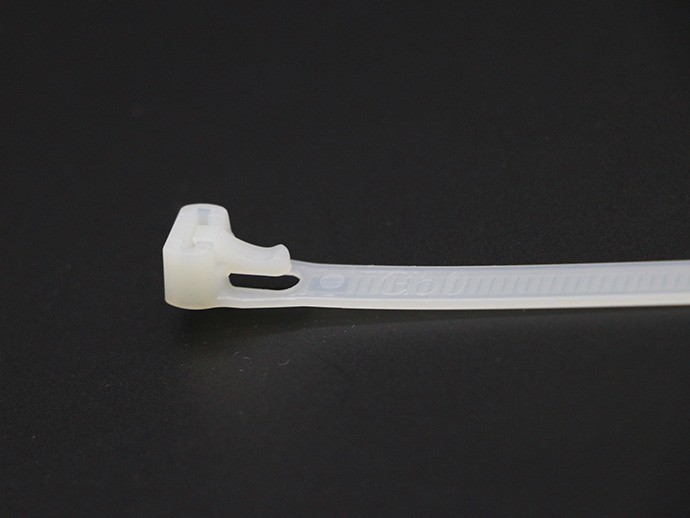

Releasable cable ties

Technical information
Material UL approved Polyamide 6.6
Temperature range -20°C to +85°C (-4°F to 185°F)
Color Natural,black,other colors are available upon request
Flammability rating UL 94V-2
  UV resistant are available upon request
Other properties Halogen free, Silicone free
Characteristics

• For temporary but strong bundling, such as during control box wiring

• Very simple application

• Available in seven lengths

• Maybe re-used many times

• No tooling necessary



Releasable cable ties Henan Quanxiang Industrial Co., Ltd.
Item No. Type Length Width Max Bundle Min. Tensile Strength Pack Quantity
[mm] [in] [mm] [in] [mm] [in] [kgs] [lbs] [pcs]
GWRN-100HD 1 100 3.9 7.6  0.3 20 0.8  22.2 50 100
GWRN-120HD 120 4.7 7.6  0.3 30 1.2  22.2 50 100
GWRN-150HD 150 5.9 7.6  0.3 35 1.4  22.2 50 100
GWRN-200HD 200 7.9 7.6  0.3 50 2.0  22.2 50 100
GWRN-250HD 250 9.8 7.6  0.3 66 2.6  22.2 50 100
GWRN-300HD 300 11.8 7.6  0.3 80 3.1  22.2 50 100
GWRN-370HD 370 14.6 7.6  0.3 102 4.0  22.2 50 100
GWRP-200I 2 200 8 3.6  0.14 53 2.1  18.2 40 100
GWRP-200ST 200 8 4.8  0.19 53 2.1  22.2 50 100
GWRP-300ST 300 11.8 4.8  0.19 76 3.0  22.2 50 100
GWRP-370ST 370 14.6 4.8  0.19 102 4.0  22.2 50 100
GWRP-610HD 610 24 7.6  0.3 178 7.0  79.4 175 100
GWRP-780HD 780 30.7 9.0  0.35 228 9.0  79.4 175 100
Requst quotation Requst samples

Packaging

    • Henan Quanxiang Industrial Co., Ltd.
    • Henan Quanxiang Industrial Co., Ltd.
    • Henan Quanxiang Industrial Co., Ltd.
