Download drawings Download specification

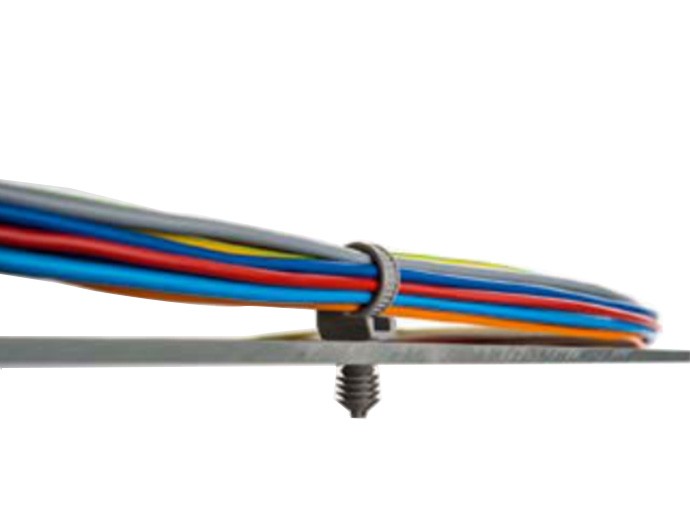

One piece fixing Ties with Arrow head, with Disc for Oval hole

Technical information
Material	UL approved nylon 66, 94v-2
Color	Black
Features & Benefits	specialized in designed for oval hole, which is different from the normal ones, it can avoid cables being twisted while inserted into panel, head situated in defined position and simply locks into place, effectively prevent damage to the wiring harness.

One piece fixing Ties with Arrow head, with Disc for Oval hole Henan Quanxiang Industrial Co., Ltd.

Heating and Weather Resistant					High Temperature and outdoor				Operating Temperature：-40℃~+105℃
Product	Bundle Ø (mm)		Size (mm)		Panel Thickness（mm）		Hole Ø	Min. loop Tensile Strength		Packing
code	Min.	Max	L	W	Min.	Max	(mm)	N( kgf)		(pcs/bag)	(pcs/case)
QX50SD6	1.0	30.0	170	5	0.6	1.6	Ø7×12	150（15.30）		100	2500
